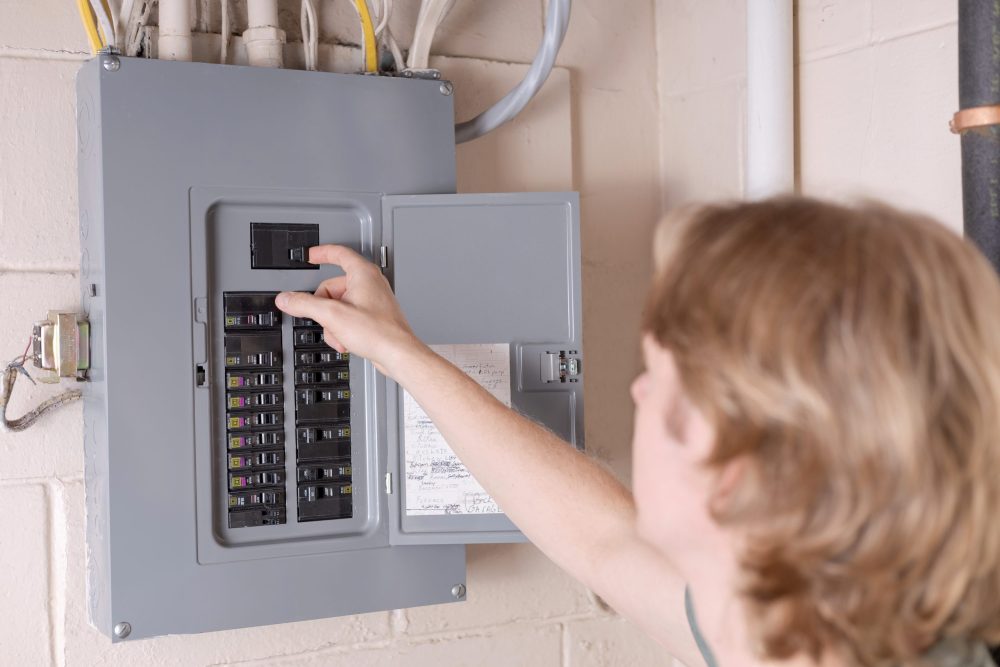

Understanding Circuit Breakers in Commercial and Residential Electrical Design

Circuit breakers are among the least visible components of a building until something goes wrong. Tucked inside electrical panels, they govern how power moves through homes, offices, retail spaces, factories, and other properties while providing a critical layer of protection against abnormal electrical conditions. Their job may appear straightforward, but selecting and coordinating circuit breakers requires careful consideration of load characteristics, wiring methods, equipment requirements, system voltage, available fault current, and applicable electrical codes. Residential and commercial properties also create markedly different operating conditions, making breaker selection more complex than simply matching an amperage rating to a circuit. As buildings become more electrified and increasingly dependent on sophisticated equipment, the breaker has become an important design decision rather than an afterthought. Understanding how these devices work is therefore essential for anyone involved in electrical design, construction, maintenance, or property ownership.

The Fundamental Role of Circuit Breakers in Electrical Systems

At its most basic level, a circuit breaker is an automatically operated switching device designed to interrupt electrical current when unsafe conditions arise. Conductors and electrical equipment are designed to carry only certain amounts of current before excessive heat begins damaging insulation, connections, and surrounding materials. A breaker monitors the current flowing through a circuit and disconnects the power when predetermined operating limits are exceeded. Unlike a fuse, which generally must be replaced after it operates, most circuit breakers can be reset after the underlying problem has been identified and corrected. This resettable design makes breakers especially practical in modern buildings where circuits may experience occasional overloads or equipment faults. The protective function, however, depends heavily on choosing a breaker that is properly matched to the conductors and equipment it serves.

Two electrical conditions account for much of a circuit breaker’s protective work: overloads and short circuits. An overload occurs when equipment draws more current than the circuit is designed to carry for an extended period, such as when too many appliances or devices are operated simultaneously. A short circuit is substantially different because it involves an unintended low-resistance path that can cause current to rise dramatically in a fraction of a second. Breakers are designed to respond differently to these conditions, allowing brief and acceptable increases in current while acting rapidly when severe fault current develops. This distinction is important because some electrical equipment, particularly motors and transformers, can draw high current briefly during startup without indicating a dangerous condition. Proper breaker design therefore requires balancing protection with the practical operating characteristics of the connected load.

Circuit breakers also serve a broader role in electrical distribution by dividing a building into independently protected branch circuits and feeders. This segmentation makes it possible for a fault in one portion of a property to be isolated without shutting down the entire electrical system. In a home, a tripped kitchen breaker can leave bedrooms and lighting circuits operational. In a commercial facility, proper distribution can allow one office, motor, or equipment group to lose power while essential operations continue elsewhere. The result is not simply improved convenience, but greater system reliability and safer troubleshooting. For designers, the arrangement of breakers throughout the electrical system is therefore closely tied to how a building will function during both normal operation and abnormal events.

Breaker Ratings and Why Correct Selection Matters

A breaker face contains several ratings and markings that provide essential information about how the device is intended to operate. The ampere rating is often the most recognizable number, but it represents only one aspect of breaker selection. Designers must also consider voltage rating, interrupting rating, number of poles, frequency, listing information, and compatibility with the panel or switchboard in which the breaker will be installed. A 20-amp breaker, for example, cannot automatically be assumed suitable for every 20-amp application because system voltage and available fault current may differ substantially. The breaker must be listed and rated for the electrical characteristics it will encounter. Ignoring these details can compromise both equipment protection and personnel safety.

Correct breaker selection becomes especially challenging when replacing existing equipment because amperage alone does not establish compatibility. Contractors, facility managers, and property owners often need to compare manufacturer specifications, panel requirements, voltage ratings, pole configurations, and breaker types before making a purchase. Reputable electrical suppliers can therefore be useful not only as purchasing channels, but also as resources for comparing equipment across applications. BuyRite Electric, an online destination for lighting, electrical supplies, and tools since 1986, is one source for evaluating those options. Its selection includes a wide range of circuit breakers for residential and commercial systems across different manufacturers, amperage ratings, and configurations. That variety reinforces an important design principle: breakers should never be chosen simply because they appear to fit a panel. Panel labeling, manufacturer documentation, listing requirements, and existing equipment specifications must always be verified before installation.

The interrupting rating deserves particular attention because it indicates the maximum prospective fault current the breaker can safely interrupt under specified conditions. During a serious short circuit, thousands or even tens of thousands of amperes may attempt to flow through a building’s electrical system. If a breaker is asked to interrupt a fault that exceeds its rated capability, the device can fail violently instead of safely clearing the circuit. Residential systems may have comparatively modest available fault currents, although this cannot simply be assumed based on building type. Commercial properties located near large utility transformers can have considerably higher fault current levels. Electrical designers consequently perform or obtain fault-current information so protective equipment can be specified with adequate interrupting capacity throughout the system.

How Residential Circuit Breaker Design Differs

Residential electrical systems generally prioritize straightforward distribution, affordability, compact equipment, and protection for occupants who may have little technical knowledge of electricity. A typical home receives power through a service panel that distributes electricity among lighting circuits, receptacle circuits, kitchen appliances, heating and cooling equipment, water heaters, laundry equipment, and other household loads. Single-pole breakers commonly serve 120-volt branch circuits, while double-pole breakers are often used for 240-volt equipment. The breaker sizes vary according to conductor capacity and appliance requirements rather than the physical size or perceived importance of the device being powered. Modern homes also contain far more electrical equipment than homes built several decades ago, adding new pressure to service and branch-circuit design. Electric vehicle charging, heat pumps, induction cooking, electronics, home offices, and distributed energy systems are changing the residential load profile.

Protection against hazards beyond conventional overcurrent conditions has also become increasingly prominent in residential installations. Ground-fault circuit interrupter protection is intended to reduce the risk of electric shock by responding to small imbalances between outgoing and returning current. Arc-fault circuit interrupter protection addresses certain dangerous arcing conditions that ordinary thermal-magnetic protection may not detect quickly enough. Depending on the installation and governing code requirements, combination devices can integrate multiple protective functions into a single breaker. These technologies increase the sophistication of the residential panel while also changing how homeowners experience nuisance trips and electrical troubleshooting. A breaker trip may therefore indicate an overload, a ground fault, an arc-fault condition, or another abnormal event. Correct diagnosis matters because repeatedly resetting a breaker without identifying the cause can allow a hazardous condition to persist.

Residential breaker design must also anticipate how people actually use a home, rather than merely how the building appears on a set of plans. Kitchens can produce substantial coincident loads when countertop appliances, cooking equipment, refrigeration, and dishwashing equipment operate at the same time. Bedrooms may have relatively modest traditional loads but increasingly contain computers, entertainment systems, chargers, and climate-control devices. Garages can support tools, freezers, workshop equipment, and vehicle charging systems that materially change demand. Outdoor circuits introduce moisture exposure and additional requirements for protective devices and weather-resistant equipment. An effective residential design therefore combines code-compliant minimums with practical assumptions about current and future household behavior. Allowing sensible capacity for future electrical additions can reduce the need for disruptive service upgrades later.

Commercial Breaker Systems and Higher Electrical Demands

Commercial electrical systems typically involve greater diversity in voltage, load type, occupancy patterns, and distribution architecture than residential systems. An office tower, restaurant, supermarket, warehouse, hospital, and manufacturing facility may all be classified broadly as commercial or nonresidential properties, yet their electrical requirements differ dramatically. Many commercial buildings use three-phase power because it is well suited to motors, large mechanical systems, elevators, and high-capacity distribution equipment. Distribution may involve service equipment, switchboards, switchgear, transformers, panelboards, motor-control equipment, and multiple levels of feeder protection. Breakers can range from familiar molded-case devices to larger insulated-case and power circuit breakers with sophisticated electronic trip units. As system size increases, breaker selection becomes closely connected to engineering studies and system coordination.

Commercial breakers frequently need to accommodate loads with significant starting currents or unusual operating characteristics. Motors, compressors, transformers, commercial kitchen equipment, elevators, data systems, and mechanical equipment can create demand patterns that differ substantially from household appliances. A breaker selected too aggressively may trip during normal startup, while one selected too loosely may fail to provide adequate protection during abnormal conditions. Engineers use equipment data, conductor characteristics, demand calculations, and applicable standards to establish suitable protective settings. Adjustable electronic trip functions may allow larger breakers to be configured for long-time, short-time, instantaneous, and ground-fault protection. These capabilities provide greater design flexibility, but they also require careful engineering because inappropriate settings can undermine coordination or protection.

Business continuity adds another dimension to commercial breaker design. An unnecessary outage in a residence is inconvenient, but an unnecessary outage in a data center, manufacturing plant, hospital, hotel, or grocery store can create substantial financial and operational consequences. Designers therefore pay close attention to selective coordination, system redundancy, emergency power, and the sequence in which protective devices respond to faults. The objective is often to disconnect the smallest possible portion of the system while allowing unaffected areas to continue operating. Achieving that outcome may require reviewing breaker time-current characteristics and comparing them with upstream and downstream protective devices. The complexity grows when generators, automatic transfer switches, uninterruptible power supplies, or renewable energy systems are introduced. In such environments, breaker behavior becomes a key element of operational resilience.

Thermal-Magnetic and Electronic Trip Technologies

Many common circuit breakers rely on thermal-magnetic trip mechanisms because they provide reliable protection against both sustained overloads and high-current faults. The thermal element typically reacts to heat produced by excessive current over time. Because heating does not occur instantaneously, the breaker can tolerate brief current increases that may occur when equipment starts. As the magnitude and duration of the overload increase, the breaker operates more quickly. The magnetic element responds much faster to very high current associated with severe faults such as short circuits. Together, these two mechanisms create a time-current response that protects wiring while allowing normal transient conditions. This approach is widely used because it is relatively simple, proven, and cost-effective.

Electronic trip units expand on this concept by measuring current electronically and applying programmable or adjustable protection logic. They are frequently found in larger commercial and industrial breakers where system conditions require more precision and flexibility. Depending on the equipment, engineers may be able to adjust pickup levels and delay times for multiple protection functions. This capability makes it possible to coordinate downstream and upstream breakers more carefully than may be practical with fixed thermal-magnetic devices. Electronic trip systems can also offer metering, communications, event logging, and diagnostic functions that support facility management. These features are becoming increasingly valuable as buildings adopt digital monitoring and predictive maintenance practices.

The difference between these technologies is not merely a matter of sophistication. Trip characteristics affect how a circuit behaves during ordinary equipment startup, modest overloads, and serious faults. A protective device that reacts too slowly can expose conductors and equipment to damaging thermal or mechanical stress. A device that reacts unnecessarily quickly can interrupt legitimate operations and create costly downtime. Engineers therefore review time-current curves, manufacturer data, and the characteristics of connected equipment when making protection decisions. In larger systems, the interaction among several breakers can be more important than the behavior of any one device. Good design requires considering protection as a coordinated system rather than as a collection of isolated components.

Ground-Fault, Arc-Fault, and Personnel Protection

Traditional circuit breakers primarily protect conductors and equipment against excessive current, but not every dangerous electrical condition produces enough current to trip a conventional breaker quickly. A person contacting an energized conductor, for example, can experience a dangerous electric shock at a current level far below the rating of a standard branch-circuit breaker. Ground-fault protective technology addresses this gap by detecting differences between current leaving and returning through a circuit. When the imbalance exceeds the device’s threshold, the circuit is disconnected. Residential installations commonly use this type of protection in locations where moisture or grounded surfaces increase shock risk. Commercial installations also use ground-fault protection in many applications, although equipment-level and personnel-level protective requirements can differ.

Arc faults present another challenge because damaged insulation, loose connections, deteriorated conductors, or other defects can create electrical arcing without producing the conventional short-circuit current expected from a direct fault. Arcing can generate intense localized heat and ignite combustible material. Arc-fault protective devices analyze electrical characteristics associated with certain hazardous arcing patterns and disconnect the affected circuit when those conditions are detected. The technology does not eliminate every potential source of electrical fire, but it adds another layer of protection beyond conventional overcurrent devices. Its increasing use reflects the broader shift toward protective systems capable of recognizing more subtle electrical abnormalities. Proper installation and troubleshooting remain important because unusual equipment characteristics can sometimes complicate fault detection.

Ground-fault and arc-fault technologies also change the diagnostic process after a breaker operates. A conventional overload can often be understood by identifying excessive connected load, but advanced protective devices may respond to wiring defects, leakage current, damaged equipment, moisture, or arcing conditions that are less obvious. Simply replacing the breaker with a larger device is not an acceptable solution to repeated tripping because the breaker may be identifying a genuine hazard. Technicians may need to isolate loads, inspect wiring, test equipment, and verify circuit conditions methodically. In commercial facilities, maintenance records and breaker event data can help identify recurring patterns. In homes, qualified electrical evaluation is especially important when trips occur repeatedly without an obvious cause. Protection is most effective when a trip is treated as information about the system rather than as an inconvenience to be bypassed.

Selective Coordination and Fault-Current Management

Selective coordination is the practice of arranging protective devices so the device closest to a fault operates before upstream devices whenever practical and required. Consider a commercial building with several branch panels supplied from a main distribution board. If a fault occurs on one branch circuit, the ideal outcome is for the branch breaker to open while the feeder breaker and main breaker remain closed. Poor coordination can cause a larger upstream breaker to trip, disconnecting multiple areas that were not involved in the fault. This can turn a minor local electrical problem into a building-wide operational interruption. Coordination is particularly important in facilities where continuity affects safety or essential services. Engineers evaluate protective-device characteristics carefully to reduce unnecessary cascading outages.

Fault-current calculations form another major part of this process because the available short-circuit current can vary at different points within a distribution system. Current is influenced by the utility source, transformers, conductor impedance, generators, motors, and other system components. Equipment located close to a large transformer may experience substantially greater prospective fault current than equipment farther downstream. Breakers and panelboards must have ratings suitable for the available fault current at their installation points. Designers may also use properly engineered series-rated combinations in certain systems, subject to applicable listing and code requirements. These arrangements should not be improvised in the field because their performance depends on tested equipment combinations and specific installation conditions.

Arc-flash considerations further demonstrate why fault-current management is more than an equipment-selection exercise. High-energy faults can release intense heat, pressure, molten material, and light within a very short period. Breaker operating time can influence the amount of incident energy produced before a fault is cleared. In some commercial and industrial environments, engineers evaluate protective settings not only for conductor protection and coordination but also for their effect on arc-flash exposure. Changing a trip setting to improve coordination can sometimes alter clearing time, so competing design objectives must be balanced carefully. This is one reason advanced electrical systems are frequently supported by short-circuit, coordination, and arc-flash studies. Breaker selection in such facilities is consequently part of a broader electrical safety strategy.

Load Calculations, Breaker Sizing, and Circuit Planning

Breaker sizing begins with understanding the load rather than selecting a convenient device from a panel schedule. Electrical loads differ according to operating duration, duty cycle, starting characteristics, diversity, and the possibility that several devices will run simultaneously. Codes and equipment instructions establish rules for conductor sizing and overcurrent protection under different conditions. Continuous loads can require additional capacity because they may operate at their expected current for extended periods. Motors, heating equipment, appliances, and other specialized loads may have specific sizing provisions that differ from ordinary receptacle circuits. Designers must therefore apply the rules appropriate to each load category rather than treating every circuit identically.

The relationship among breaker rating, conductor ampacity, and connected equipment is particularly important. Increasing breaker size without confirming conductor capacity can permit wiring to carry more current than it was designed to handle. Conversely, selecting an unnecessarily small breaker can create repeated trips despite otherwise safe equipment operation. Conductor size is also affected by factors including insulation rating, ambient temperature, the number of current-carrying conductors grouped together, termination ratings, and installation method. Voltage drop may require larger conductors on long circuits even when ampacity alone would permit a smaller size. These variables illustrate why breaker size should emerge from electrical design calculations rather than from habit or guesswork. The breaker, conductor, and load form an interconnected design package.

Long-term planning also deserves attention because electrical demand continues to evolve after buildings are occupied. A residence may later add an electric vehicle charger, heat pump, workshop, pool equipment, or solar installation. A commercial property may add kitchen equipment, servers, production machinery, HVAC capacity, or tenant improvements. Leaving appropriate physical and electrical capacity can make these future changes more manageable. That does not mean oversizing breakers on existing circuits, which can be unsafe and contrary to equipment requirements. Instead, designers may provide suitable service capacity, spare panel spaces, appropriately sized feeders, or planned expansion provisions. Thoughtful circuit planning can lower renovation costs while preserving the protective principles on which the original system was designed.

Maintenance, Aging, and Breaker Replacement

Circuit breakers are often expected to remain in service for many years, but they are mechanical and electrical devices that can be affected by age, environmental conditions, loading, contamination, corrosion, and repeated operations. Connections can loosen over time, and excessive resistance at a termination can generate damaging heat even when circuit current remains below the breaker’s nominal rating. Commercial switchgear may also accumulate dust or experience environmental conditions that affect insulation and operating mechanisms. Breakers subjected to severe faults should be evaluated because a fault can impose substantial thermal and mechanical stress. Maintenance requirements vary widely according to breaker type and manufacturer. Facility managers should therefore rely on applicable equipment documentation and qualified electrical professionals when developing inspection and maintenance programs.

Warning signs deserve attention even when the breaker has not visibly failed. Discoloration near terminals, unusual heat, buzzing sounds, a burning odor, physical damage, repeated nuisance tripping, or difficulty resetting a device can indicate an underlying problem. The breaker itself may be defective, but damaged conductors, loose connections, overloaded circuits, or failing equipment can produce similar symptoms. Replacing a breaker without diagnosing the circuit may therefore leave the actual cause unresolved. Conversely, repeatedly resetting a breaker that is responding correctly can expose equipment and wiring to continued abnormal conditions. Troubleshooting should focus first on determining why the device operated. The purpose of the breaker is to reveal and interrupt unsafe electrical behavior, not merely to restore power as quickly as possible.

Replacement also requires attention to equipment compatibility rather than just matching ampere ratings. Breakers are designed and listed for use with specific panelboards, switchboards, or other distribution equipment. Devices from different manufacturers can sometimes look similar while having different mounting features, bus connections, performance characteristics, or listing restrictions. Installing an unapproved breaker can create poor electrical contact and can compromise the safety certification of the equipment. Replacement work should therefore begin with panel labeling, equipment documentation, and the specifications of the original system. Older or obsolete electrical panels can create additional challenges because suitable listed replacement components may be difficult to obtain. In such cases, a broader panel or distribution upgrade may be more appropriate than adapting an incompatible breaker.

Designing Electrical Protection for the Next Generation of Buildings

The role of the circuit breaker is expanding as buildings adopt electric transportation, renewable generation, battery storage, smart controls, and increasingly sophisticated power electronics. Traditional electrical systems were largely designed around power flowing in one direction from the utility to the building’s loads. Solar photovoltaic systems and battery installations can introduce additional sources and more complicated operating states. Electric vehicle infrastructure can create large sustained loads that materially affect residential and commercial demand calculations. Building electrification can also replace gas-fired heating and cooking equipment with electrical alternatives, increasing the importance of service capacity and distribution planning. Breakers remain central to these systems, but their selection increasingly requires understanding how multiple technologies interact. Future-ready design therefore depends on looking beyond today’s connected loads.

Digital breakers and intelligent distribution equipment are also changing the amount of information available to owners and facility managers. Some systems can provide current measurements, energy data, trip histories, alarms, and remote monitoring capabilities. These functions can help identify unusual demand patterns, overloaded circuits, equipment deterioration, or recurring events before they become larger operational problems. In commercial properties, breaker data can be integrated with broader building-management and energy-management platforms. Residential technologies are beginning to offer similar visibility, giving homeowners more detailed information about how electricity is used throughout a property. Greater data does not replace sound protective design, but it can make the system easier to understand and maintain. The circuit breaker is gradually becoming both a protective device and a source of operational intelligence.

Despite advances in technology, the essential design principle remains unchanged: electrical protection must be matched to the system it serves. Residential and commercial installations differ in scale, voltage, load characteristics, fault-current exposure, operational priorities, and maintenance requirements, yet both depend on properly coordinated overcurrent protection. A breaker that is suitable in one application can be inappropriate in another, even when the ampere ratings appear identical. Good design considers conductors, connected equipment, available fault current, trip characteristics, code requirements, panel compatibility, and future changes as parts of the same decision. These considerations explain why experienced designers treat the breaker as more than a resettable switch. It is one of the central control points between normal electrical operation and potentially damaging fault conditions.

Understanding circuit breakers ultimately means understanding how buildings use and distribute electrical energy. The devices must permit normal current to flow reliably while recognizing abnormal conditions quickly enough to prevent avoidable damage and reduce risk. In residences, that responsibility increasingly includes sophisticated shock and fire protection alongside growing electrical demand. In commercial facilities, it extends to coordination, operational continuity, fault-current management, and complex distribution architecture. As buildings become more dependent on electricity, mistakes in protective-device selection can carry greater consequences for safety, property, and productivity. Careful specification, installation, maintenance, and system planning are therefore essential throughout the life of an electrical installation. A well-designed breaker system may rarely attract attention, but that quiet reliability is precisely what effective electrical protection is intended to deliver.
